Features and instructions

  • Equiped in the tip of machine injection nozzle and it commonly used to protect the hot runner system. In order to filter the impurity within the plastic.

Introduction

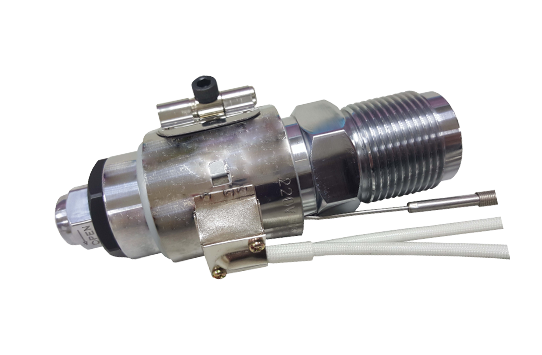

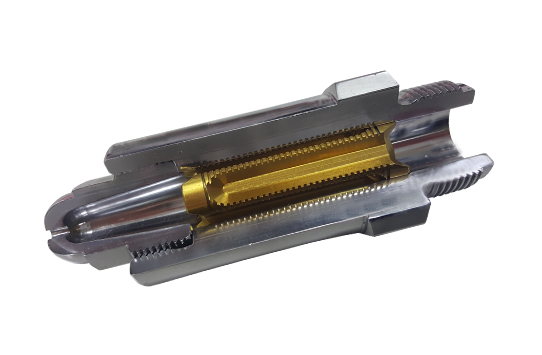

The filter nozzle was installed in the front tip of the injection molding machine barrel and using different types of inserts lead to reach effectiveness of filtering impurities.

  • Prevent the runner gate from clogging.
  • Filter impurities.
  • Easy to be installed and maintained.

Specification

N40:Used by injection machines less than 400 tons with one shot weight less than 1 kg.

N50:Used by 400-1000 tons injection machines with one shot weight less than 5 kg.

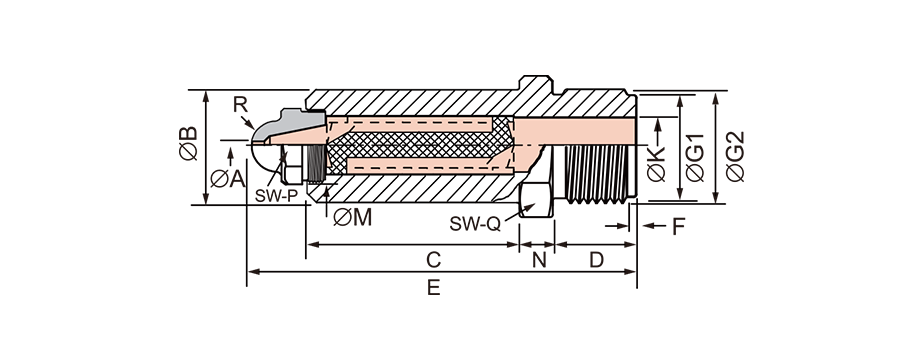

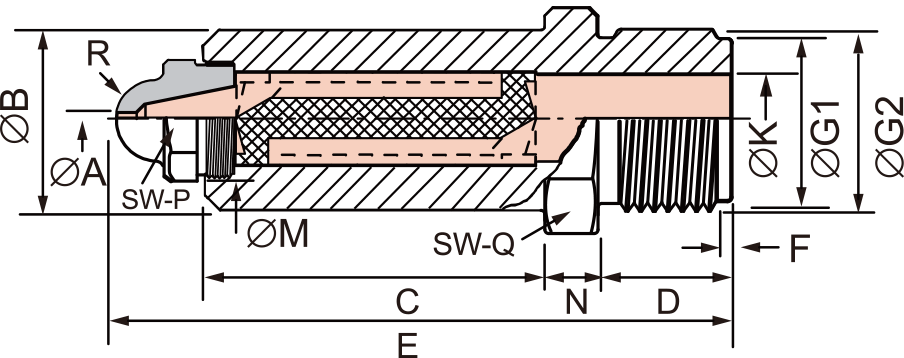

Type Ø A Ø B C D E F Ø G1 Ø G2 K Ø M N SW-P SW-Q R
N 40 3 40 70             30 16 23 41 10
N 50 3 50 90             38 20 29 54 13

Filter insert type W H Ø S
M 1 0.8 0.8 15、20、30、45
1.5 1.5
M 2 50 0.8
