Features and instructions

  • No stringing, no drooling, no residue in the gate. Very good gate mark.
  • Because it can provide bigger gate size, therefore it is very suitable for big size injection molding. Also lower injection pressure and less stress during molding.
  • A sequence controlled valve gate system could help produce a no weld line part.
  • We provide AVMT, SVDT, NL-SVDP, SVG types.

Introduction

  • For the valve pin bushing is integrated with the nozzle, the structure of manifold become very simple, and therefore this series is most suitable for the multi-cavity application.
  • There is a pin in the nozzle and drive by pneumatic or hydraulic to open or close the nozzle. When the valve pin open / close can control the melt filling.
  • Especially for the big gate design, the valve pin will seal the gate after packing process to prevent the stringing and get the unapparent gat mark.

Specification


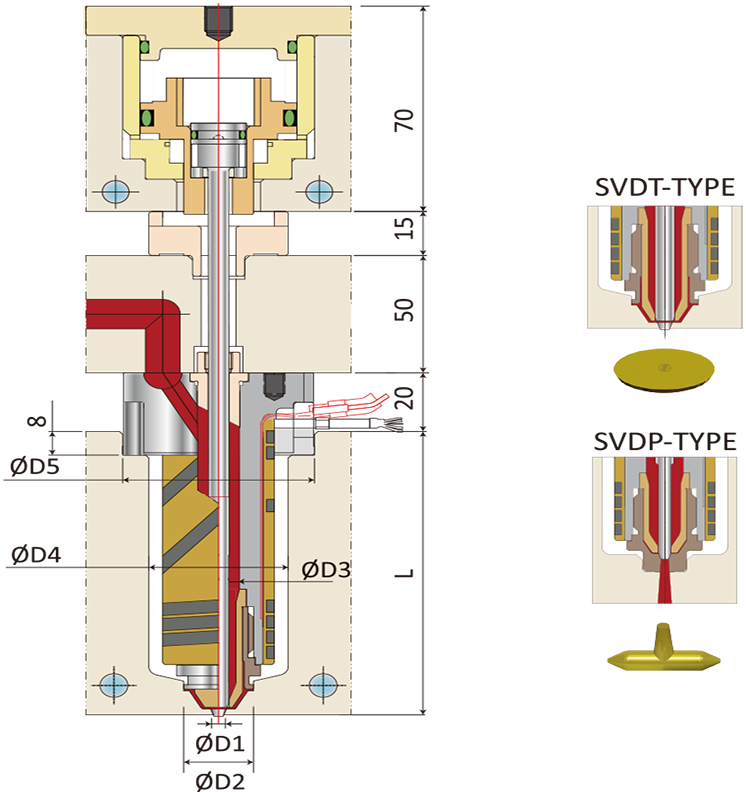

Type SVDT 18 SVDT 38 SVDT 48 SVDT 58 SVDP 38 SVDP 48 SVDP 58
Ø D1 0.8~1.5 1.5~2.5 3.0~5.0 5.0~7.0 1.5~2.5 3.0~5.0 5.0~7.0
Ø D2 8 15 20 25 12 14 20
Ø D3 5 8 12 14 8 12 14
Ø D4 16 30 40 45 30 40 45
Ø D5 32 42 55 60 42 55 60
L 60~120 100~250 100~400 100~600 100~250 100~400 100~600
