Features and instructions

  • Simple and easy to use.
  • According to the necessary, we can choose by using Sprue gating or Pin-point gating nozzle.
  • The sprue nozzle is the most popular type. Not only it's suitable for almost all of the plastic material but also it provides easy color change.
  • The pin-point gating nozzle: It provides good gate mark, reduction in raw materials consumption, and reduction of finishing work on molding.
  • There are AESB, ANPR, ANPT, NL-ANPT and other specifications.

Introduction

  • The most used nozzle.
  • Suitable for all kind of polymer.
  • Higher shot weight and easy color change.
  • The structure is simple but can be customized according to the function and design from customer.
  • For large parts, we have many experiences in back-injection, multi-cavities and asymmetric mold.
  • The nozzle not only has standard and lengthening bushing but also can be trirmmed to fit the mold base thickness.

Specification

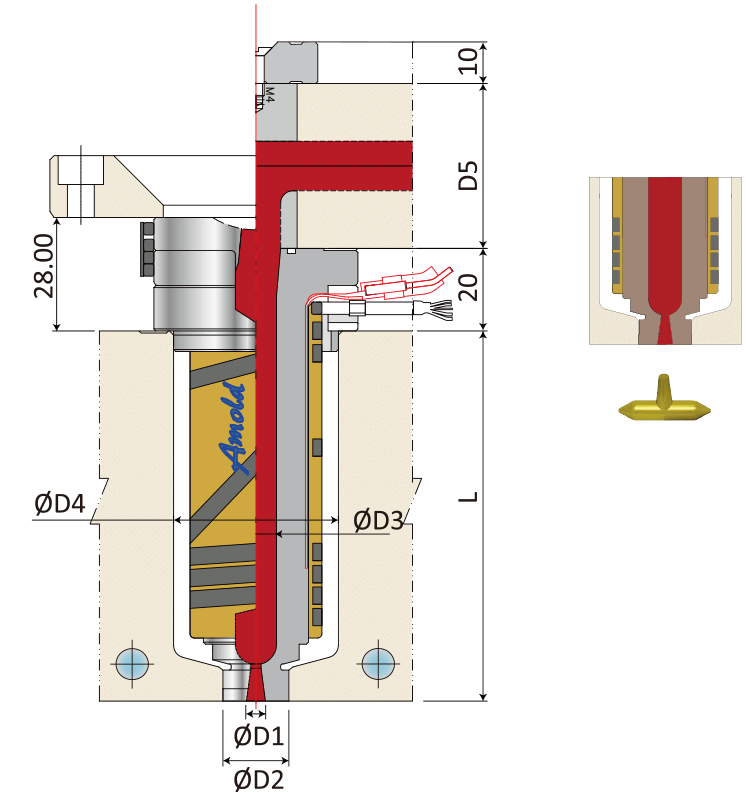

aesb模穴
Type AESB 10 AESB 20 AESB 30 AESB 40 AESB 50
Ø D1 1.0~3.0 1.5~5.0 5.0~7.0 5.0~8.0 6.0~10.0
Ø D2 8 9 15 16 20
Ø D3 4 5 7.5 10 14
Ø D4 19 25 32 40 45
D5 40 40 40 40 45
L 55~95 52~160 80~250 80~400 80~600
